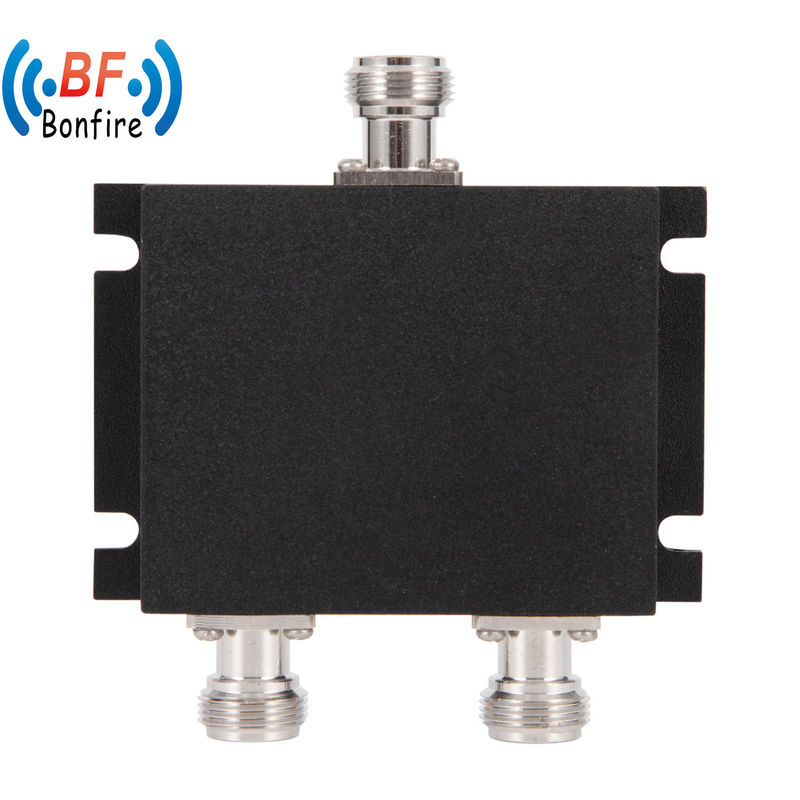

N-F Interface 136-174MHz 2 Way RF Micro Strip Power Splitter 50W NF see below data table
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | GFQ-WD0102-X1101 | Capality: | Ibs/Das Overall Project Delivery Capability |
|---|---|---|---|
| Interface: | N-F | Application: | Indoor |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 14.00cm * 9.00cm * 2.00cm |
| Package Gross Weight: | 0.190kg | ||
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:

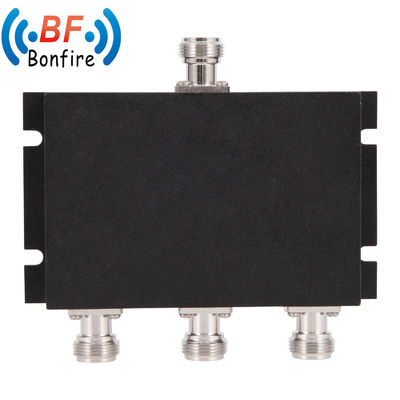

| Type | 2 - Way | 3 - Way |
| Splitting Loss (dB) | 3.0 | 4.8 |
| Insertion Loss (dB) | ≤ 0.3 | ≤ 0.4 |
| VSWR | ≤ 1.25 | ≤ 1.3 |
| Isolation (dB) | ≥ 20 | |
| Input Power(W) | 50 | |
| Impedance(Ω) | 50 | |
| RF Connector | N-F | |
| Color | Black | |
| Relative humidity | 5%~95% | |
| Operating Temperature(°C) | -20 ~ +60 | |
| Applications | Indoor | |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
