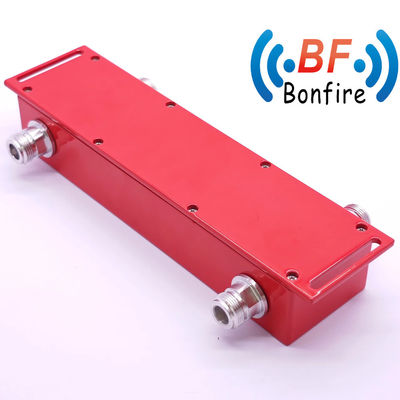

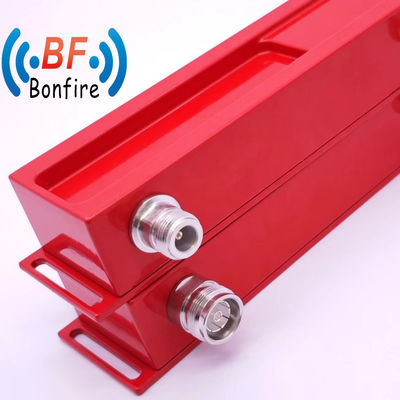

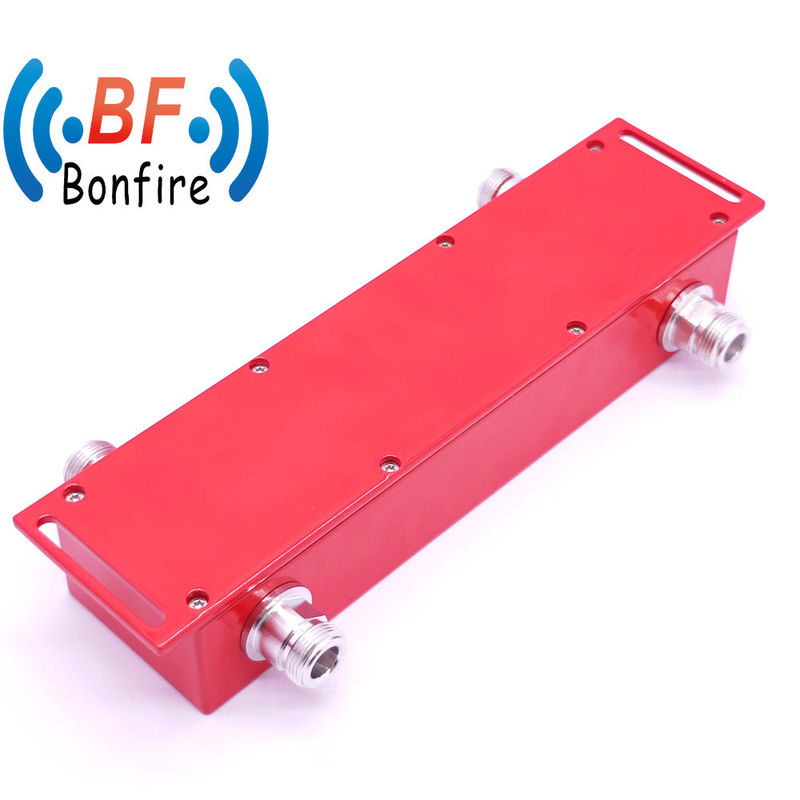

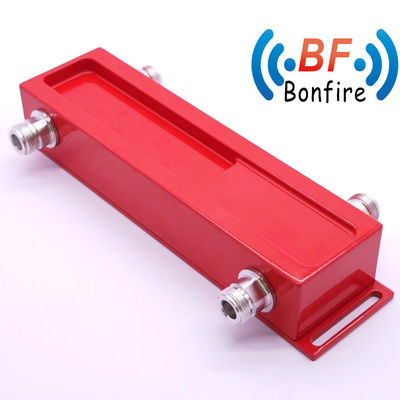

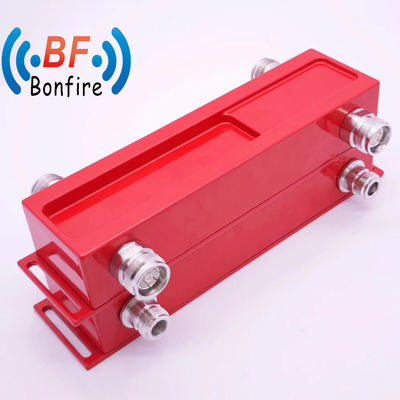

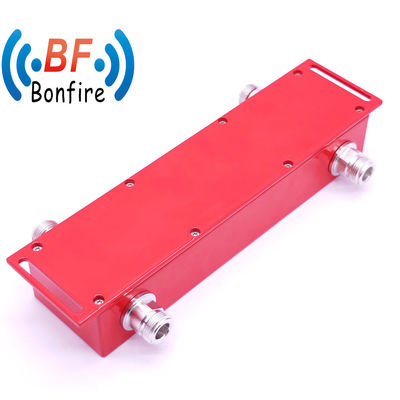

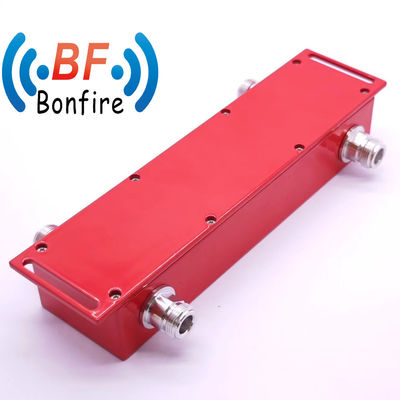

160dbc 500W N Type 698-3800MHz 2X2 Indoor Red Color Hybrid Coupler for Ibs/Das Projects
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Color: | Grey/Red/Black/Customized | Capality: | Ibs/Das Overall Project Delivery Capability |
|---|---|---|---|
| Interface: | DIN-F | Application: | Indoor/Outdoor(IP65) |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 18.00cm * 4.00cm * 2.00cm |
| Package Gross Weight: | 0.780kg | ||
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-3800 |
| VSWR | ≤1.3 |
| Insertion Loss(dB) | ≤3.9 |
| Coupling Value (dB) | 3.1 |
| Coupling Tolerance(dB) | ±0.8 |
| Isolation(dB) | ≥ 21 |
| PIM (dBc@2*43dBm) | ≤-150/-155 |
| Input Power(W) | IN-1:< 200 IN-2:< 200 |
| Impedance(Ω) | 50 |
| RF Connector | DIN-F |
| Color | Black |
| Relative humidity | 5%-95% |
| Operating Temperature(°C): | -35 ~ +75 |
| Applications: | Indoor/Outdoor(IP65) |
Low PIM Hybrid Coupler
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , RF connector , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
Want to Know more details about this product
