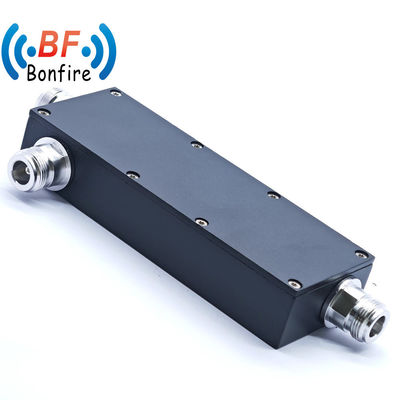

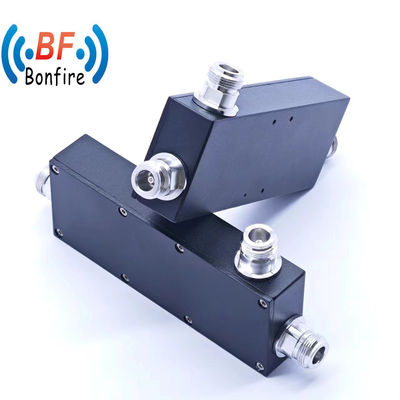

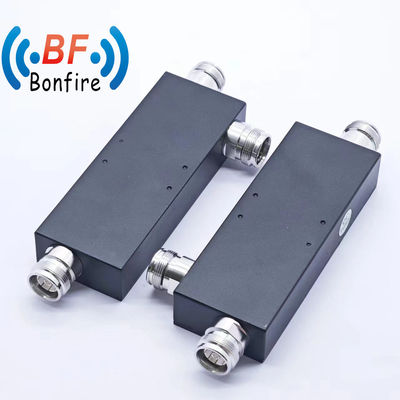

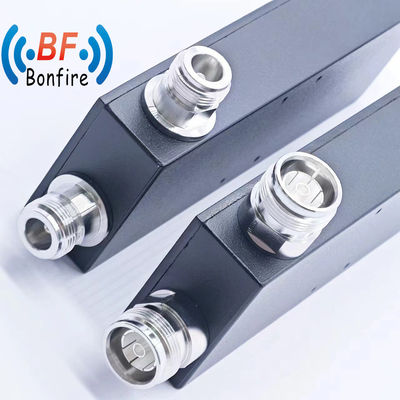

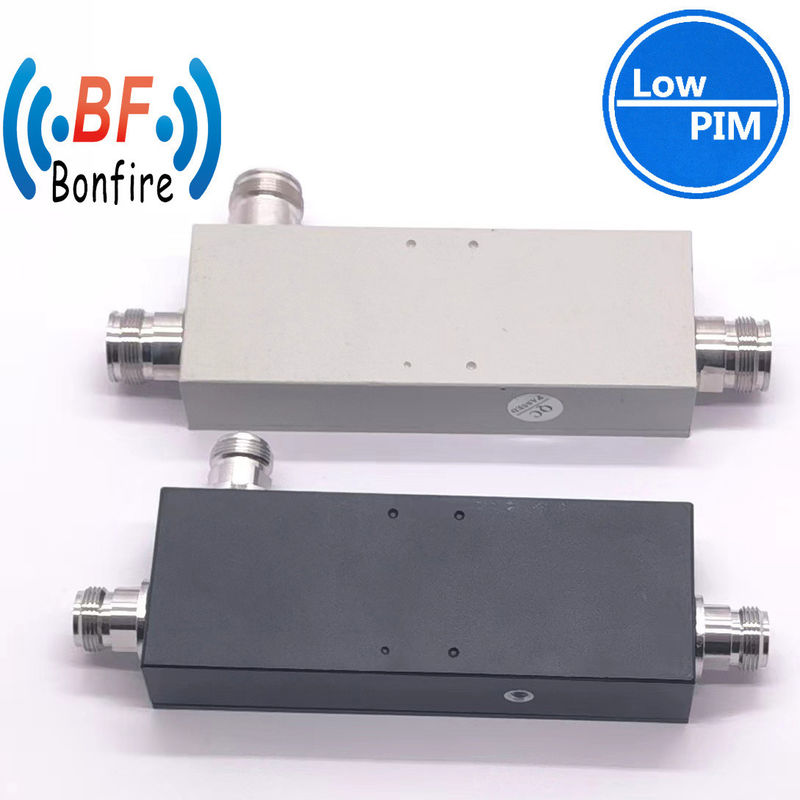

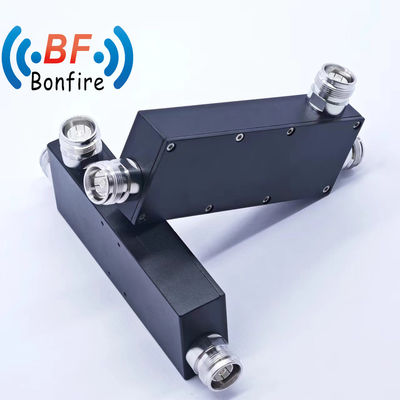

698-4200MHz 10dB Low Pim RF Air Directional Coupler Das with 0.510kg Gross Weight
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | GFQ-0740-X3301 | Color: | Grey/Red/Black/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Interface: | 4.3-10-F |
| Application: | Indoor/Outdoor(IP65) | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year |
| Package Size: | 23.00cm * 7.00cm * 3.00cm | Package Gross Weight: | 0.510kg |
Product Description
FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-4200 | ||||||||||||
| Coupling(dB) | 3 | 5 | 6 | 7 | 8 | 10 | 12 | ||||||
| Coupling Loss (dB) | 698-3800MHz | ±0.9 | ±0.9 | ±0.9 | ±1 | ±1.1 | ±1.2 | ±1.2 | |||||
| 3800-4200MHz | ±1.8 | ±1.8 | ±1.8 | ±1.8 | ±2 | ±2 | ±2 | ||||||
| Insertion Loss (dB) | ≤3.8 | ≤2.3 | ≤1.76 | ≤1.47 | ≤1.42 | ≤0.96 | ≤0.94 | ||||||
| Isolation (dB) | ≥21 | ≥23 | ≥24 | ≥25 | ≥26 | ≥28 | ≥30 | ||||||
| Coupling(dB) | 13 | 15 | 20 | 25 | 30 | 40 | |||||||
| Coupling Loss (dB) | 698-3800MHz | ±1.2 | ±1.2 | ±1.3 | ±1.3 | ±1.5 | ±1.7 | ||||||
| 3800-4200MHz | ±2 | ±2 | ±2 | ±2 | ±2 | ±2 | |||||||
| Insertion Loss (dB) | ≤0.6 | ≤0.44 | ≤0.34 | ≤0.32 | ≤0.3 | ≤0.3 | |||||||
| Isolation (dB) | ≥31 | ≥33 | ≥38 | ≥43 | ≥48 | ≥55 | |||||||
| VSWR | ≤ 1.3 | ||||||||||||
| PIM3 (dBc@2*43dBm) | ≤ -160 | ||||||||||||
| Input Power(W) | 500 | ||||||||||||
| Impedance(Ω) | 50 | ||||||||||||
| RF Connector | 4.3-10 F | ||||||||||||
| Color | Black | ||||||||||||
| Relative humidity | 5%~95% | ||||||||||||
| Operating Temperature(°C) | -35 ~ +75 | ||||||||||||
| Applications | Indoor/Outdoor(IP65) | ||||||||||||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
