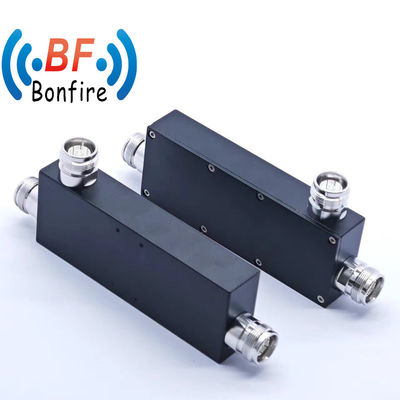

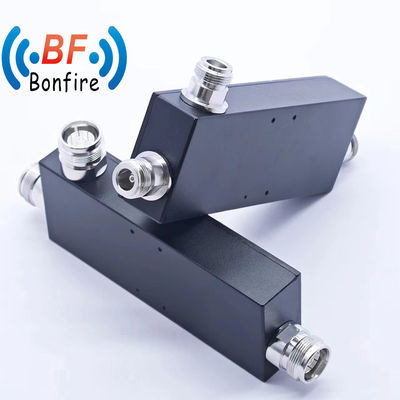

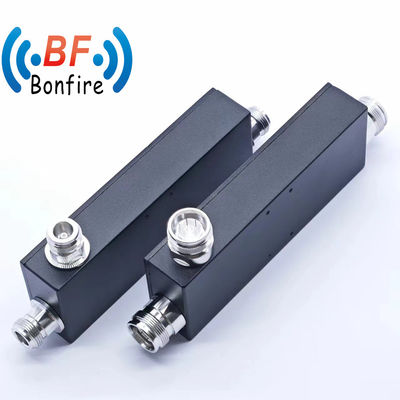

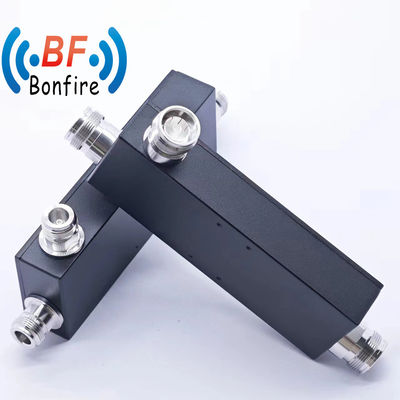

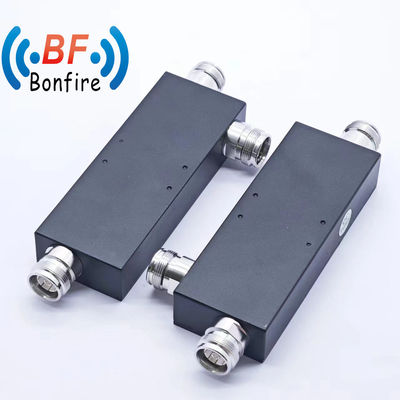

4.3-10 F RF Connector 3dB Air Reactive Directional Coupler 617-4000MHz with Small Size
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | OHQ-0640-XX7701 | Insertion Loss (dB): | ≤3.8 |
|---|---|---|---|
| RF Connector: | 4.3-10 F | Color: | Black |
| Relative Humidity: | 5%~95% | Applications: | Indoor/Outdoor |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 18.00cm * 4.00cm * 3.00cm |
| Package Gross Weight: | 0.200kg | ||
Product Description
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 617-4000 |
| Coupling(dB) | 3 |
| Coupling Loss (dB) | ±0.8 |
| Insertion Loss (dB) | ≤3.8 |
| Isolation (dB) | ≥21 |
| VSWR | ≤ 1.3 |
| PIM3 (dBc@2*43dBm) | ≤ -160 |
| Input Power(W) | 300 |
| Impedance(Ω) | 50 |
| RF Connector | 4.3-10 F |
| Color | Black |
| Relative humidity | 5%~95% |
| Operating Temperature(°C) | -35 ~ +75 |
| Applications | Indoor/Outdoor(IP65) |
All our products can satisfy :

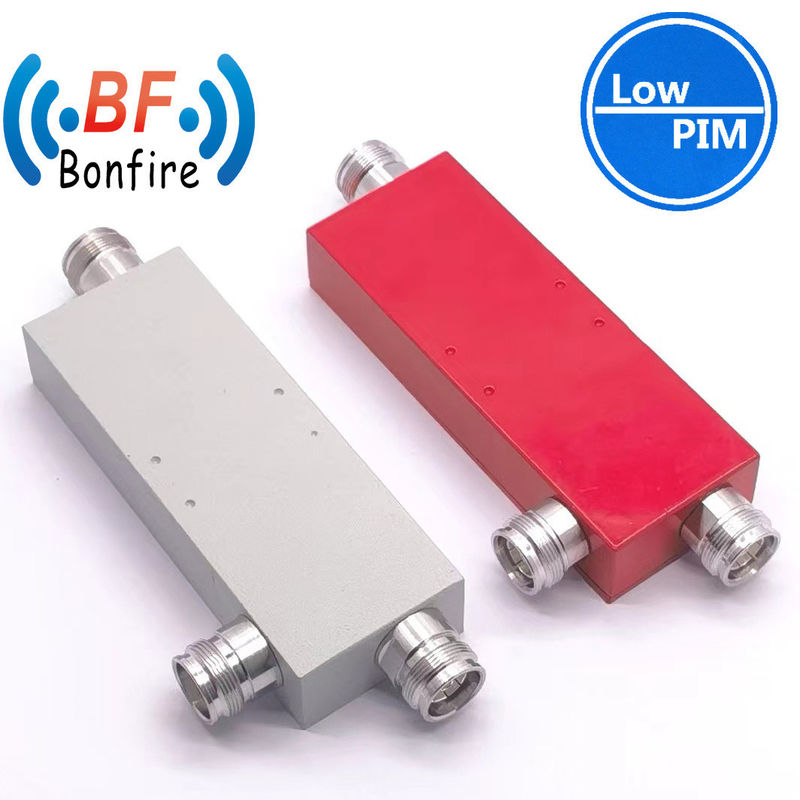

1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
