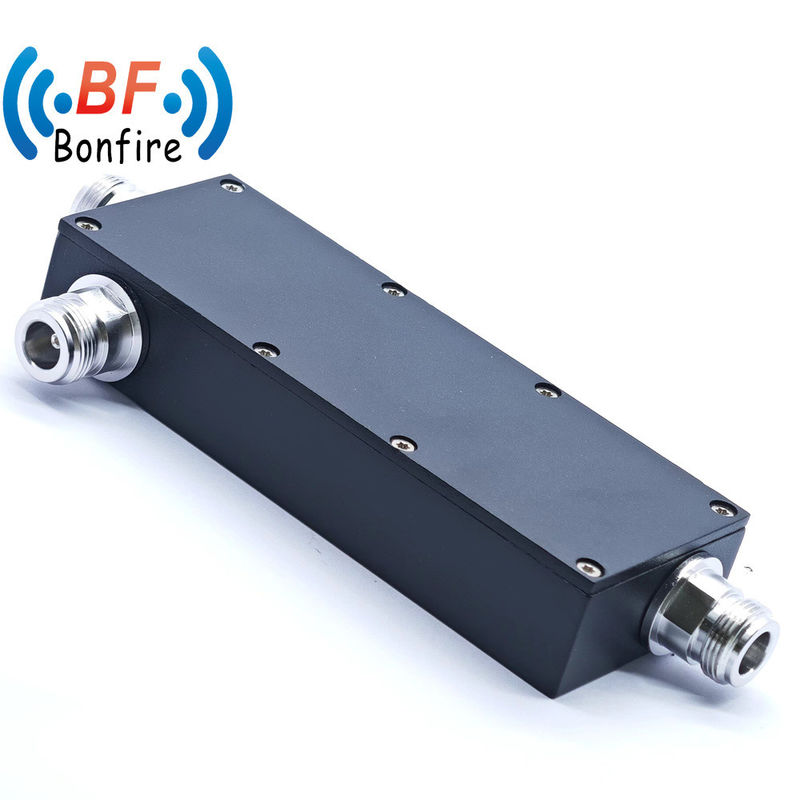

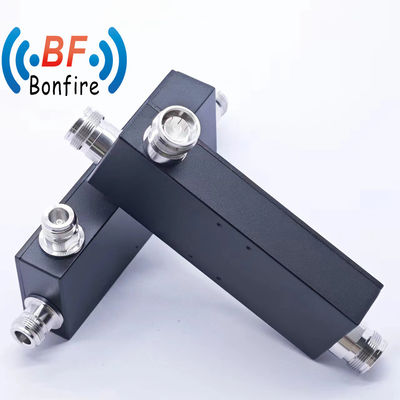

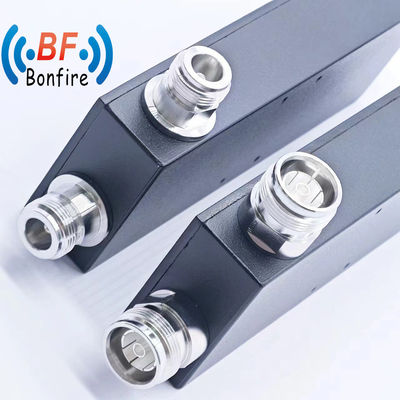

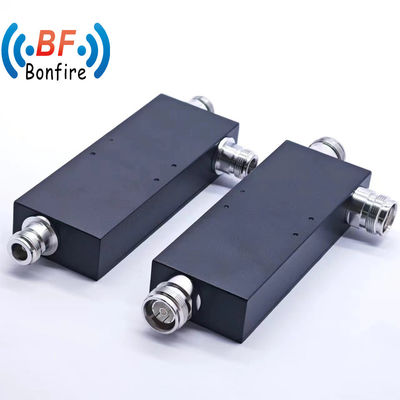

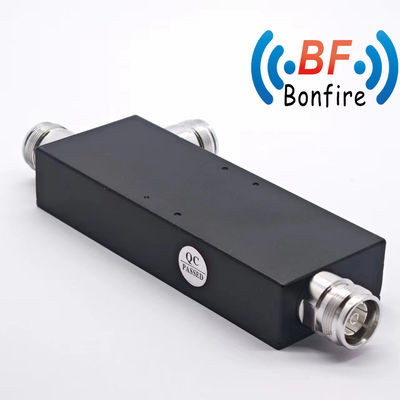

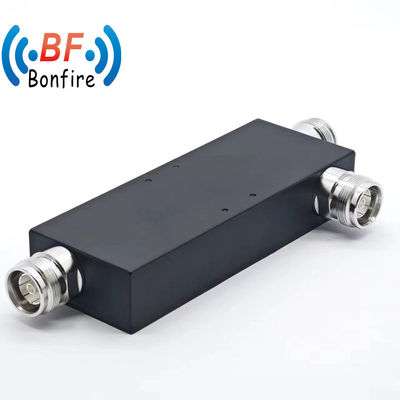

N-F Directional Coupler 698-4000MHz Black Package Gross Weight 0.200kg 06/07/08/10/15dB
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | OHQ-0740-XX7701 | RF Connector: | 4.3-10 F |
|---|---|---|---|
| Color: | Black | Applications: | Indoor/Outdoor |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 12.00cm * 6.00cm * 3.00cm |
| Package Gross Weight: | 0.200kg | ||
Product Description
- Wide frequency band, wide coverage.
- PIM optimized design.
- Ideal for all kind of DAS applications.
- Low insertion loss.
- High power handling.
- Small size, Low weight.
- Good stability.
| Frequency Range(MHz) | 698-4000 | ||||||
| PN. (XX is) | 03 | 05 | 06 | 07 | 08 | 10 | 12 |
| Coupling(dB) | 3 | 5 | 6 | 7 | 8 | 10 | 12 |
| Coupling Loss (dB) | ±0.8 | ±0.8 | ±0.8 | ±0.8 | ±1.0 | ±1.0 | ±1.0 |
| Insertion Loss (dB) | ≤3.8 | ≤2.3 | ≤1.76 | ≤1.47 | ≤1.42 | ≤0.96 | ≤0.94 |
| Isolation (dB) | ≥21 | ≥23 | ≥24 | ≥25 | ≥26 | ≥28 | ≥30 |
| VSWR | ≤ 1.3 | ||||||
| PIM3 (dBc@2*43dBm) | ≤ -160 | ||||||
| Input Power(W) | 300 | ||||||
| Impedance(Ω) | 50 | ||||||
| RF Connector | 4.3-10 F | ||||||
| Color | Black | ||||||
| Relative humidity | 5%~95% | ||||||
| Operating Temperature(°C) | -35 ~ +75 | ||||||
| Applications | Indoor/Outdoor(IP65) | ||||||
