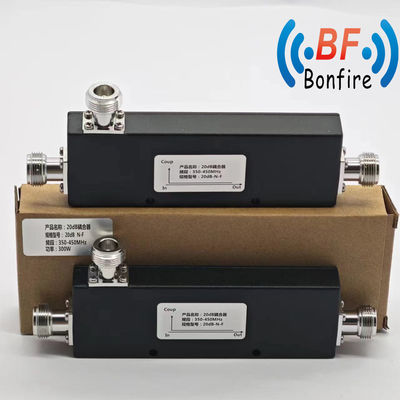

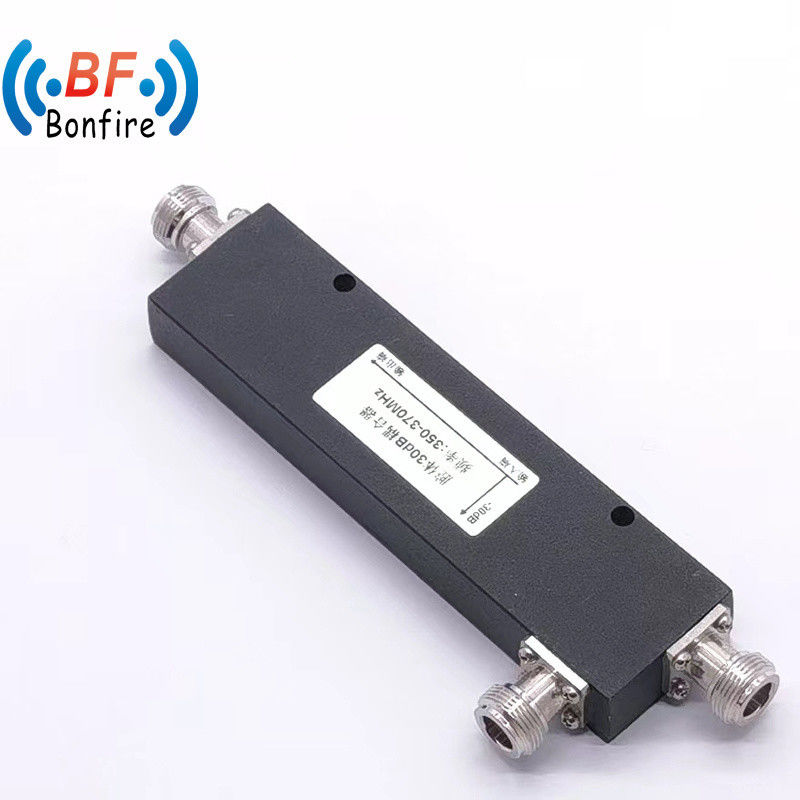

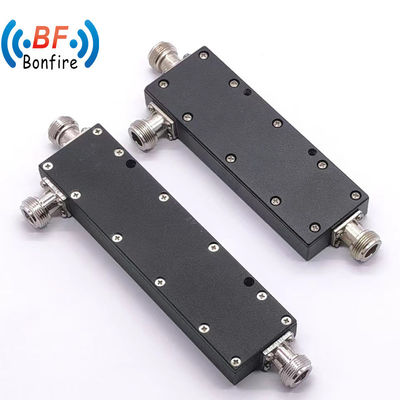

Indoor/Outdoor IP65 UHF 300-370MHz 20dB RF Directional Coupler with N Female Connector
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Delivery Time: | Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram |
|
Detail Information |
|||
| Model NO.: | OHQ-XXXX | Color: | Grey/Red/Black/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Interface: | DIN-F |
| Application: | Indoor/Outdoor(IP65) | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year |
| Package Size: | 17.00cm * 6.50cm * 2.50cm | Package Gross Weight: | 0.380kg |
Product Description
FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 350-3800 | |||||||
| Coupling(dB) | 5 | 6 | 7 | 10 | 13 | 15 | 20 | 30 |
| Coupling Loss (dB) | ±1.3 | ±1.3 | ±1.3 | ±1.5 | ±1.5 | ±1.5 | ±1.8 | ±2 |
| Insertion Loss (dB) | ≤2.3 | ≤1.76 | ≤1.47 | ≤0.96 | ≤0.6 | ≤0.44 | ≤0.34 | ≤0.3 |
| Isolation (dB) | ≥23 | ≥24 | ≥25 | ≥28 | ≥31 | ≥30 | ≥35 | ≥45 |
| VSWR | ≤ 1.3 | |||||||
| PIM3 (dBc@2*43dBm) | ≤-160 | |||||||
| Input Power(W) | 500 | |||||||
| Impedance(Ω) | 50 | |||||||
| RF Connector | DIN-F | |||||||
| Color | Black | |||||||
| Relative humidity | 5%~95% | |||||||
| Operating Temperature(°C) | -35 ~ +75 | |||||||
| Applications | Indoor/Outdoor(IP65) | |||||||
All our products can satisfy :

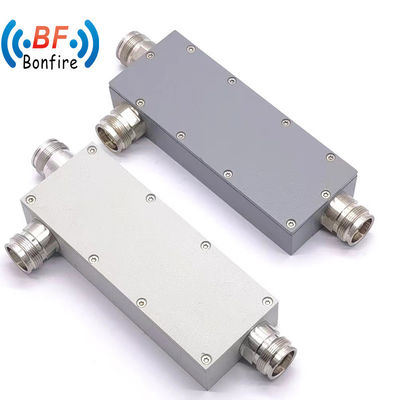

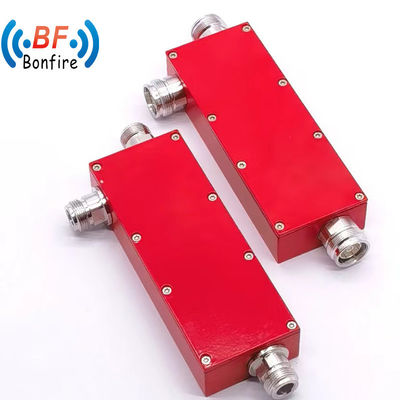

1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
