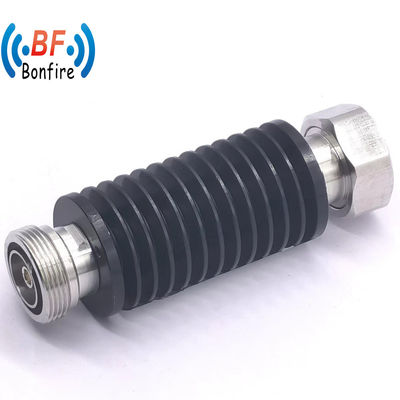

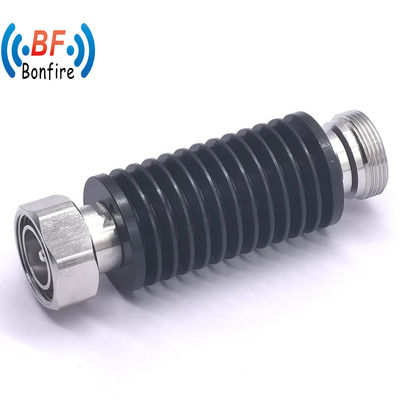

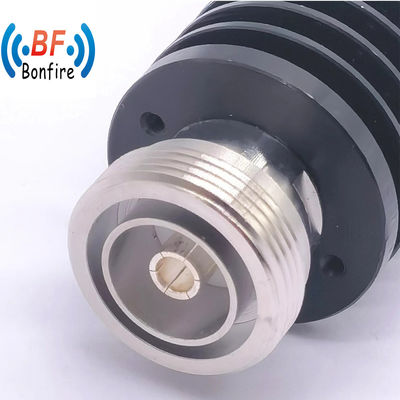

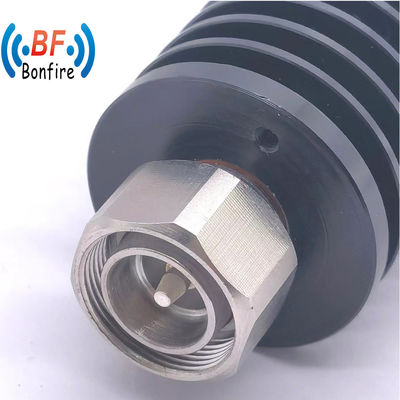

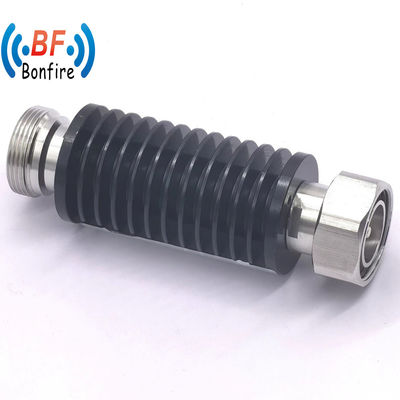

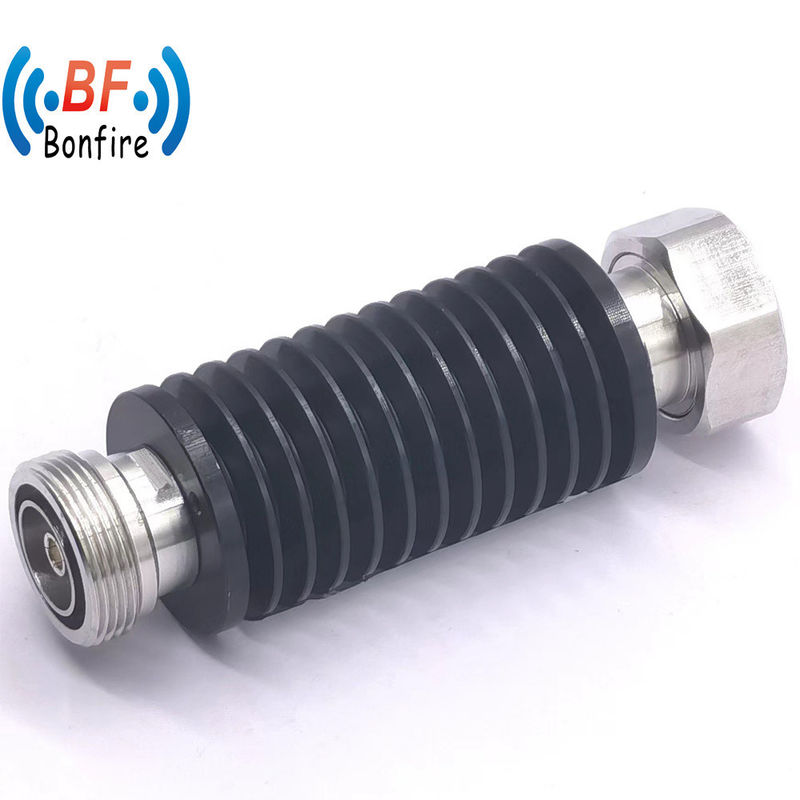

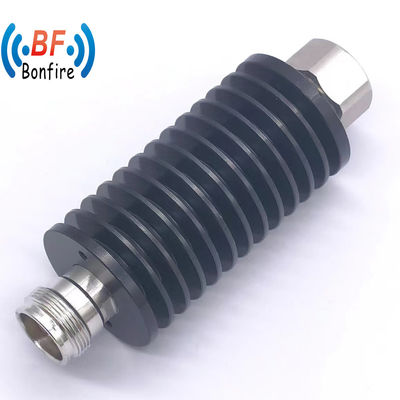

10W Microwave RF Fixed Coaxial Attenuators with N Type Male to Female Connectors
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | SJQ-0538-XX4101 | Color: | Grey/Red/Black/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Interface: | In: N-M/out: N-F |
| Application: | Indoor/Outdoor(IP65) | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year0 |
| Package Size: | 9.00cm * 1.50cm * 1.50cm | Package Gross Weight: | 0.210kg |
Product Description
Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | DC-3800 | |||||
| VSWR | ≤ 1.25 | |||||
| Attenuation(dB) | 3 | 5 | 6 | 10 | 15 | 20 |
| Accuracy(dB) | ±0.6 | ±0.6 | ±0.6 | ±0.8 | ±0.9 | ±1.1 |
| Average Power(W) | 5 | |||||
| Impedance(Ω) | 50 | |||||
| RF Connector | In: N-M/Out: N-F | |||||
| Color | Black | |||||
| Relative humidity | 5%~95% | |||||
| Operating Temperature(°C) | -35 ~ +75 | |||||
| Applications | Indoor | |||||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
