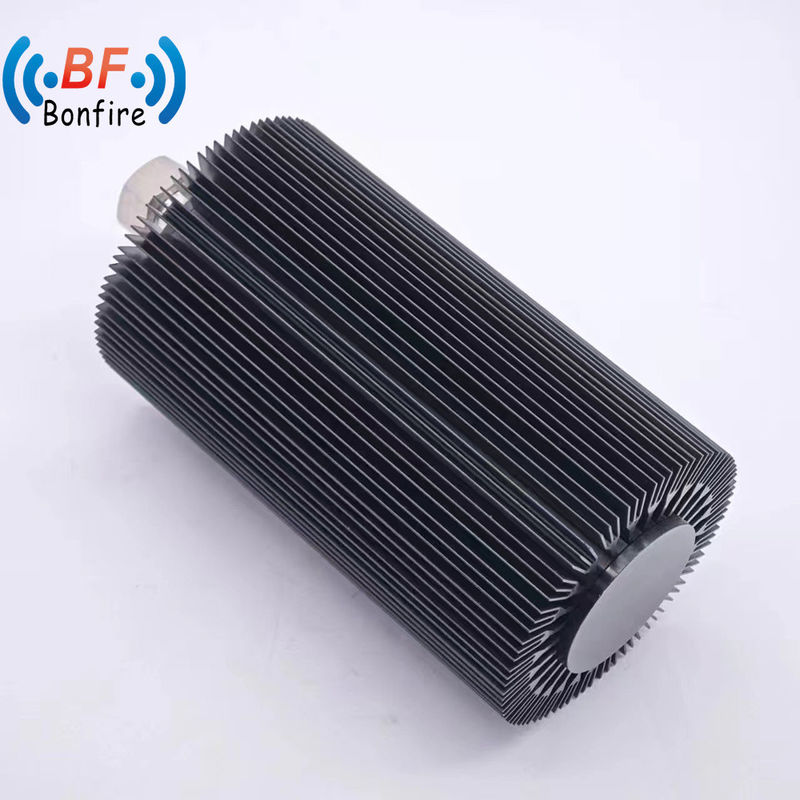

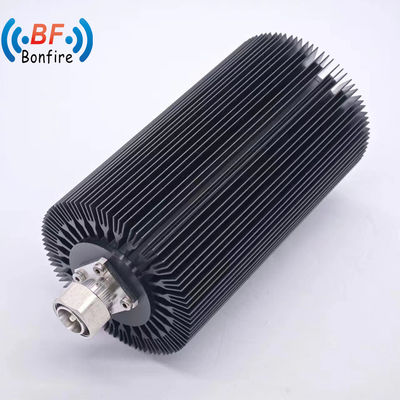

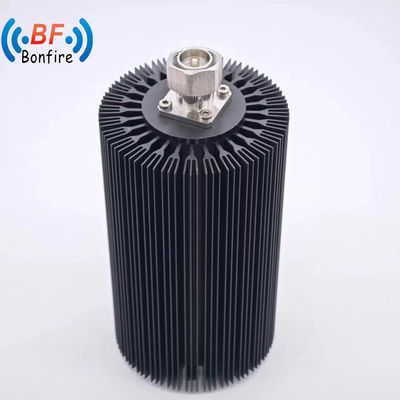

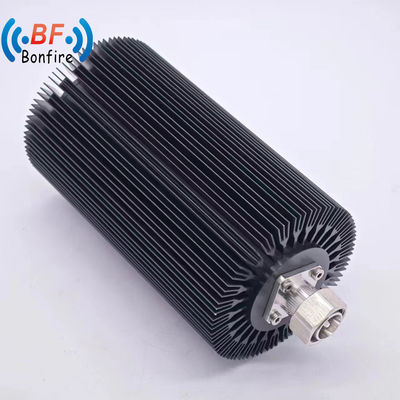

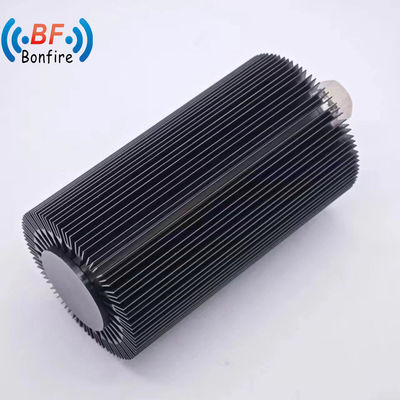

600-4000MHz High Frequency 100W N Male Plug for DAS Terminal Load RF Termination Load
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Color: | Grey/Red/Black/Customized | Capality: | Ibs/Das Overall Project Delivery Capability |
|---|---|---|---|
| Interface: | DIN-M/F 4.3-10 M/F N-M/F | Application: | Indoor/Outdoor(IP65) |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 20.00cm * 18.00cm * 7.00cm |
| Package Gross Weight: | 2.510kg | ||
Product Description
FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Input Power(W) | 75 | 100 | ||||
| RF Connector | DIN-M | DIN-F | 4.3-10 M | 4.3-10 F | N-M | N-F |
| Frequency Range(MHz) | 600-4000 | |||||
| VSWR | ≤ 1.25 | |||||
| PIM3 (dBc@2*43dBm) | ≤ -150/-155/-160 | |||||
| Impedance(Ω) | 50 | |||||
| Color | Black | |||||
| Relative humidity | 5%~95% | |||||
| Operating Temperature(°C) | -35 ~ +75 | |||||
| Applications | Indoor/Outdoor(IP65) | |||||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid

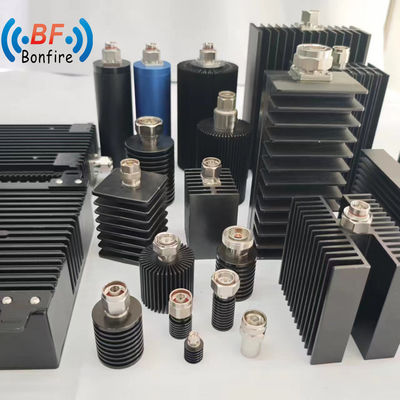

All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
