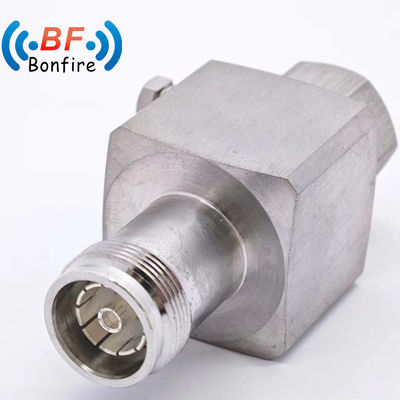

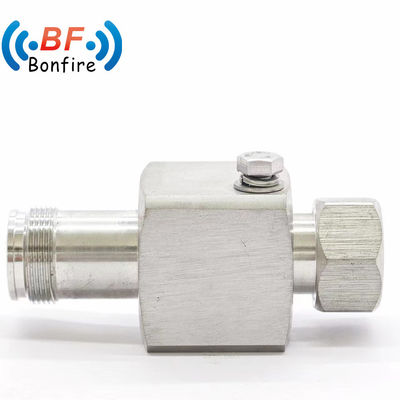

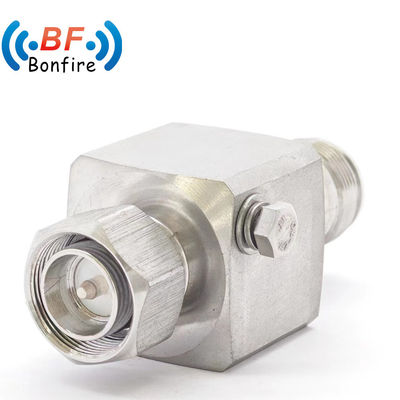

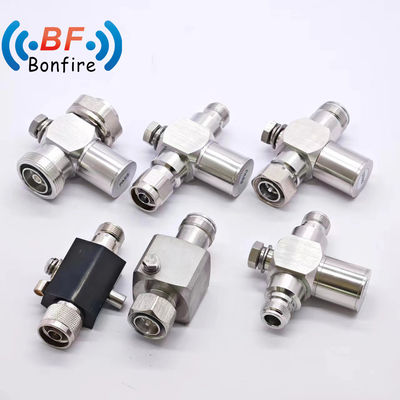

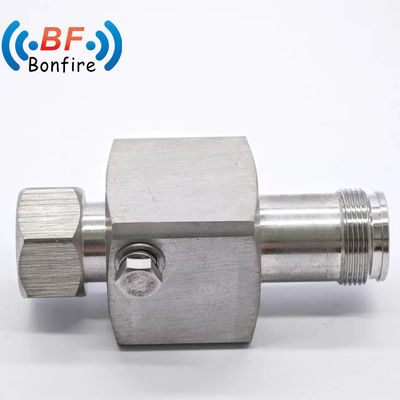

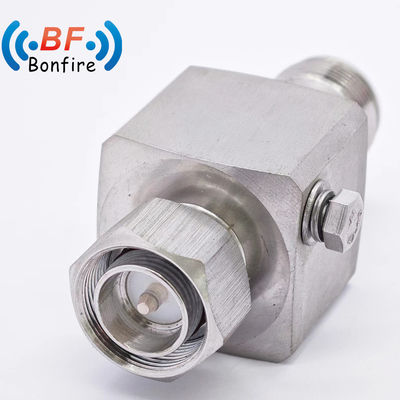

N Female Bulkhead Surge Arrester Lightning Protection with Gdt 6g RF Arrester in Grey
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | BLQ-XXXXX | Color: | Grey/Red/Black/Customized |
|---|---|---|---|
| Capality: | Ibs/Das Overall Project Delivery Capability | Interface: | N-M To N-F/N -F To 4.3-10-F/4.3-10 -M To 4.3-10-F |
| Application: | Indoor/Outdoor(IP65) | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 1000000PCS/Year |
| Package Size: | 8.00cm * 4.00cm * 2.00cm | Package Gross Weight: | 0.220kg |
Product Description
FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Frequency Range(MHz) | 698-3800 |
| VSWR | ≤ 1.3 |
| Insertion Loss | ≤ 0.3 |
| Dielectric Withstanding Voltage | ≥2500V RMS, 50HZ at sea level |
| Working Voltage | ≤1000V RMS, 50HZ at sea level |
| Impluse Discharge Current(KA) | 10 |
| Maximum Impluse Discharge Current(KA) | 20 |
| Ground Wire Diameter(mm²) | 6 |
| Dielectric Resistance(MΩ) | ≥ 5000 |
| Contact Resistance(mΩ) | Center Contact ≤ 0.4 Out Contact ≤ 0.4 |
| Durability | ≥ 500 |
| Maximum Power(W) | 2500 |
| Impedance(Ω) | 50 |
| RF Connector | In: N-M/Out: N-F |
| Color | Custom |
| Relative humidity | 5%~95% |
| Operating Temperature(°C) | -40 ~ +85 |
| Applications | Indoor/Outdoor(IP67) |
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , RF Connector, Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
