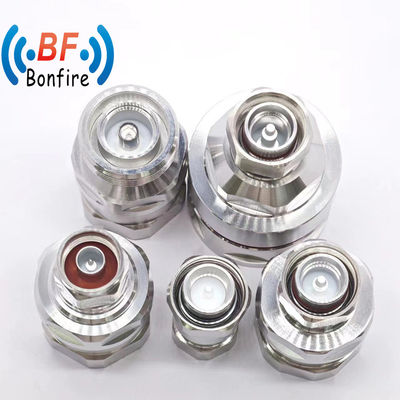

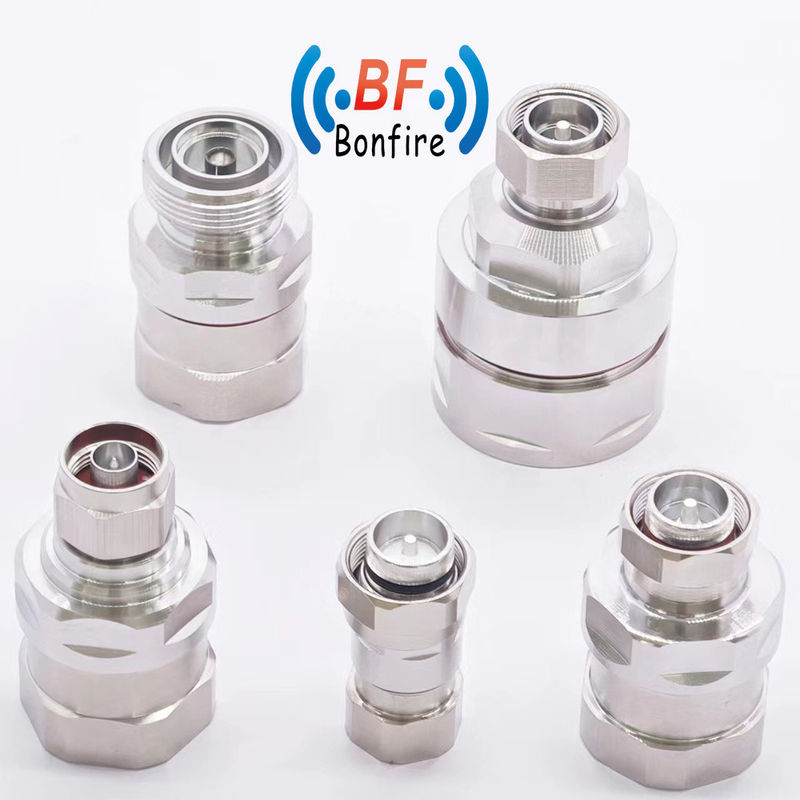

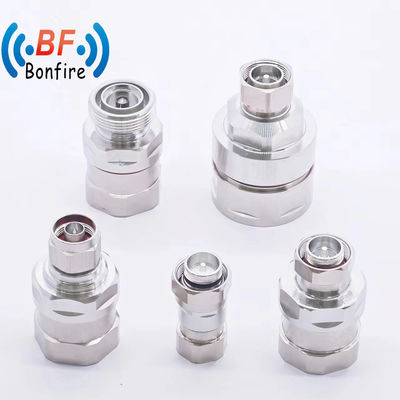

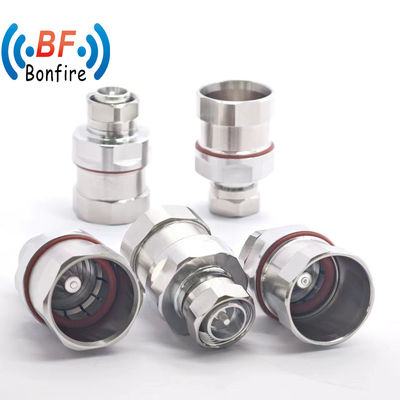

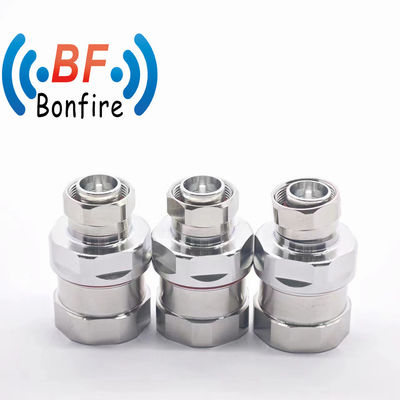

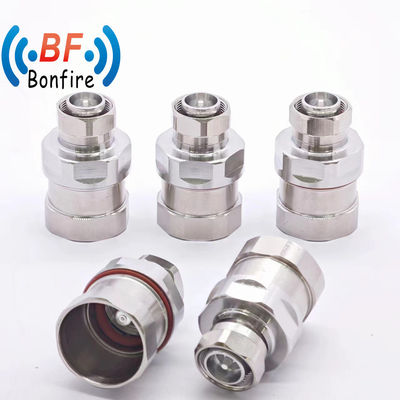

Waterproof Communication Connector for Feedercable Durability of More Than 500 Cycles
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Insertion Loss (dB): | 0.1 | Pim: | -155dbc |
|---|---|---|---|
| Durability: | More Than 500 Cycles | Waterproof Rate: | IP 67 |
| RoHS Compliant: | Full RoHS Compliance | Transport Package: | Carton/Palletizing |
| Specification: | See Below Data Table | Trademark: | BF TECH |
| Origin: | China | Supply Ability: | 2000000PCS/Year |
| Package Size: | 8.00cm * 5.00cm * 5.00cm | Package Gross Weight: | 0.210kg |
Product Description
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Electrical | ||||
| Characteristic Impedance | 50 ohm | |||
| Frequency Range | DC-4GHz | |||
| VSWR | ≤1.15 | |||
| Insertion Loss | ≤0.1dB | |||
| Intermodulation 3rd | ≤ -155dBc | |||
| Dielectric Withstanding Voltage | ≥2500V RMS,50hz,at sea level | |||
| Working Voltage | ≤1500V RMS,50Hz,at sea level | |||
| Dielectric Resistance | ≥5000MΩ | |||
| Contact Resistance | Center Contact | ≤1.0mΩ | ||
| Outer Contact | ≤1.0mΩ | |||
| Environmental & Mechanical | ||||
| Temperature Range | -45ºC ~ +85ºC | |||
| Waterproof Rate | IP 67 | |||
| Durability | ≥500 cycles | |||
| ROHS compliant | Full ROHS compliance | |||
| Material and Plating | ||||
| Material | Plating | |||
| Body | Brass | Tri-alloy | ||
| Insulator | PTFE | - | ||
| Center conductor | Brass | Ag | ||
| Circlip | Stainless steel | - | ||
| Connection sleeve | Brass | Ni | ||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
