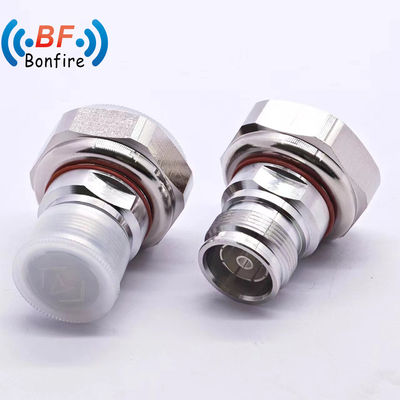

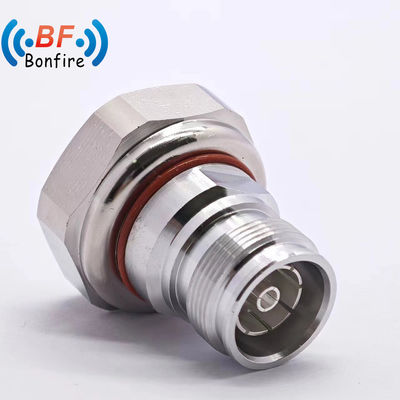

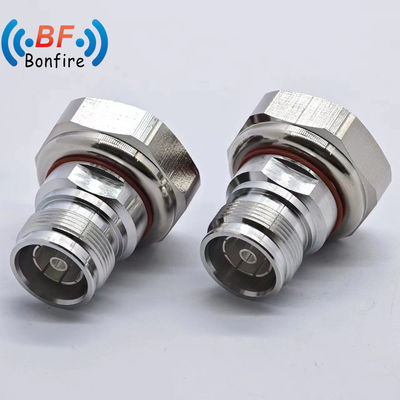

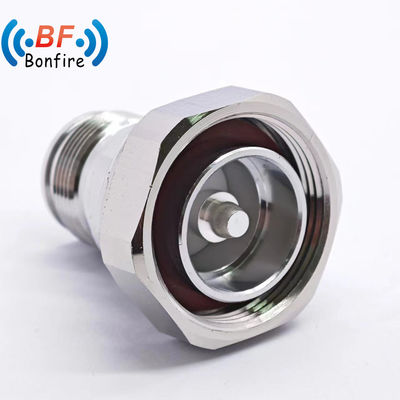

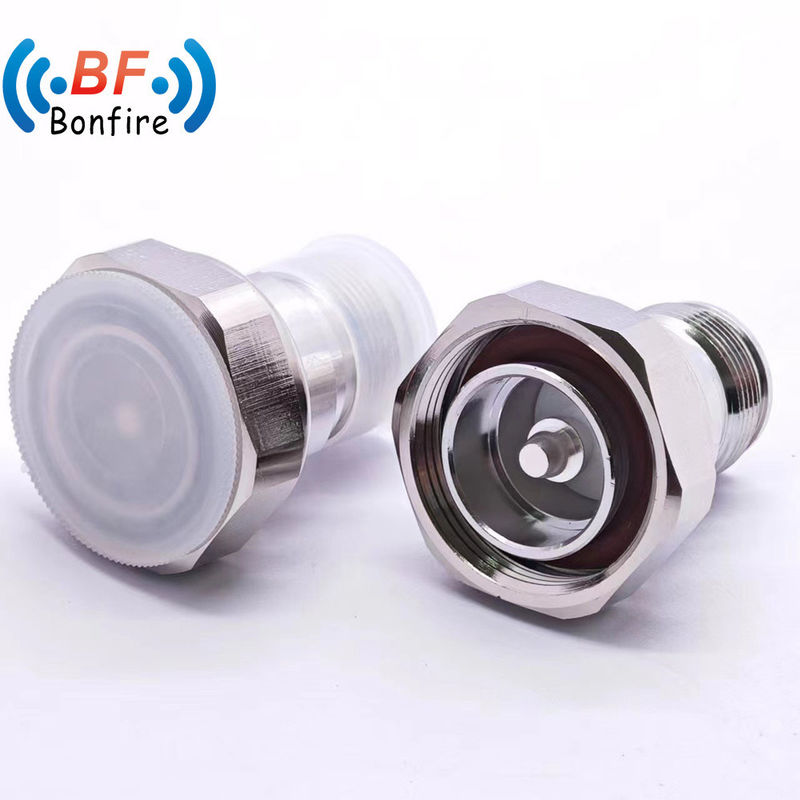

Easy RF Connection Mounting 1/2 4.3-10 DC-4GHz Cable RF Connector Mount RF Connectors
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Model NO.: | LJQ -XXXXX | Insertion Loss (dB): | 0.25 |
|---|---|---|---|
| Pim: | -155dbc | Durability: | More Than 500 Cycles |
| Waterproof Rate: | IP 67 | RoHS Compliant: | Full RoHS Compliance |
| Transport Package: | Carton/Palletizing | Specification: | See Below Data Table |
| Trademark: | BF TECH | Origin: | China |
| Supply Ability: | 2000000PCS/Year | Package Size: | 8.00cm * 5.00cm * 5.00cm |
| Package Gross Weight: | 0.210kg | ||
Product Description
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.
Specifications:
| Electrical | ||||
| Characteristic Impedance | 50 ohm | |||
| Frequency Range | DC-4GHz | |||
| VSWR | ≤1.2 | |||
| PIM | ≤-155dBc | |||
| Insertion Loss | ≤0.25dB | |||
| Dielectric Withstanding Voltage | ≥2500V RMS,50hz,at sea level | |||
| Working Voltage | ≤1000V RMS,50Hz,at sea level | |||
| Dielectric Resistance | ≥5000MΩ | |||
| Contact Resistance | Center Contact | ≤0.4mΩ | ||
| Outer Contact | ≤0.4mΩ | |||
| Environmental & Mechanical | ||||
| Temperature Range | -45ºC ~ +85ºC | |||
| Waterproof Rate | IP 67 | |||
| Durability | ≥500 cycles | |||
| ROHS compliant | Full ROHS compliance | |||
| Material and Plating | ||||
| Material | Plating | |||
| Body | Brass | Tri-alloy | ||
| Insulator | PTFE | - | ||
| Center conductor | Brass(Male) (Female) | Ag | ||
All our products can satisfy :
1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid
All our products category :
RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.
We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .
Customers we served :
HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.
Cooperate Once, Replace Never !
